Localização de termistores para reparo de aviso de alta/baixa temperatura

Jesiel Pfeifer
in REPAROS NO HARDWARE

Featured Replies

  • Popular Post

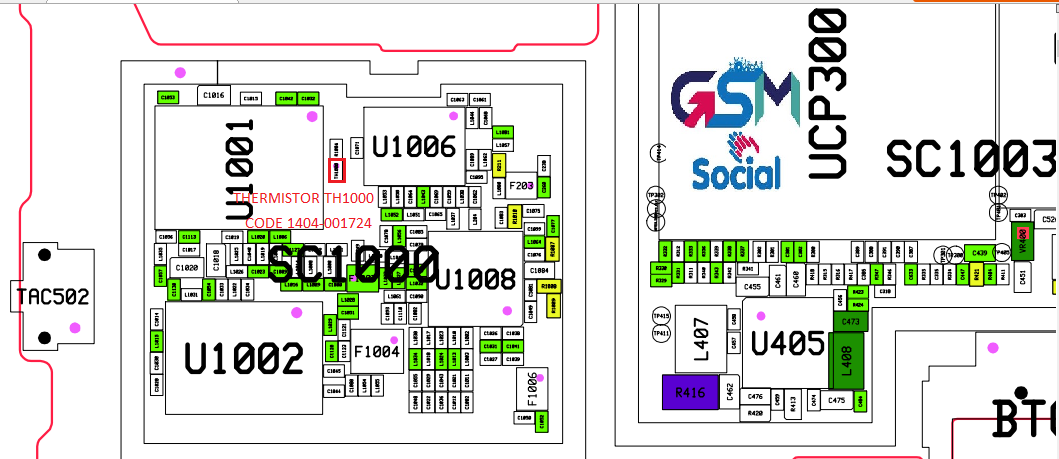

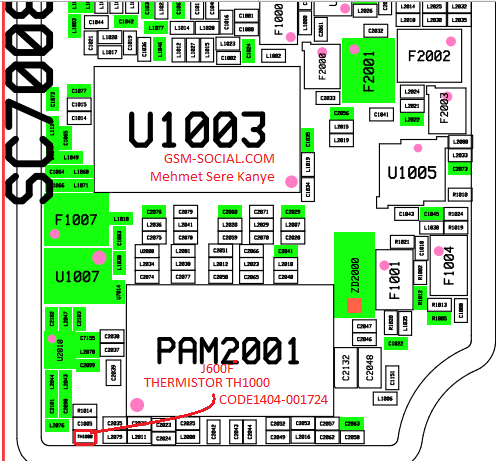

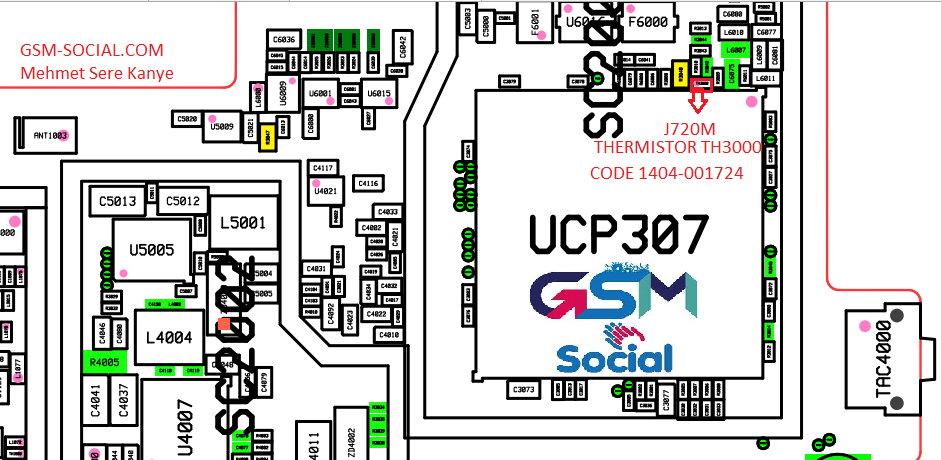

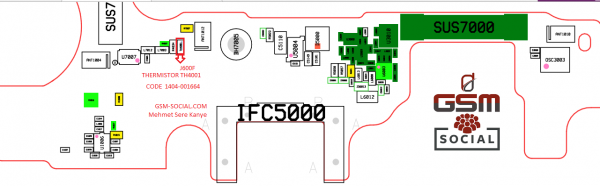

O tópico serve para postar a localização dos termistores nas placas de Samsung, e o modelo de postagem de ser feito conforme o exemplo abaixo:


Ex: SM-A805F Termistor Nº1 TH7000
<foto>


Qualquer post fora de contexto poderá ser excluído sem prévio aviso, se tiver duvida sobre o reparo crie um novo tópico solicitando auxilio.
