Procedimentos de reparo de boot via EMMC Direct e conexão JTAG utilizando a ATF Box.

Posts Recomendados

Por favor postar neste tópico procedimentos e soluções de reparo de boot e inicialização completa de qualquer marca ou modelo, utilizando a ATF box através da conexão direta ao EMMC e conexão JTAG



Se possivel, coloquem fotos dos pinouts, screenshoots e textos que objetivem uma melhor compreensão dos procedimentos realizados.

Qualquer assunto fora deste contexto serão movidos ou excluídos pela moderação sem prévio aviso

Clan Gsm sempre na frente





Editado por ToninhoSantos

Compartilhar este post


Link para o post
Compartilhar em outros sites

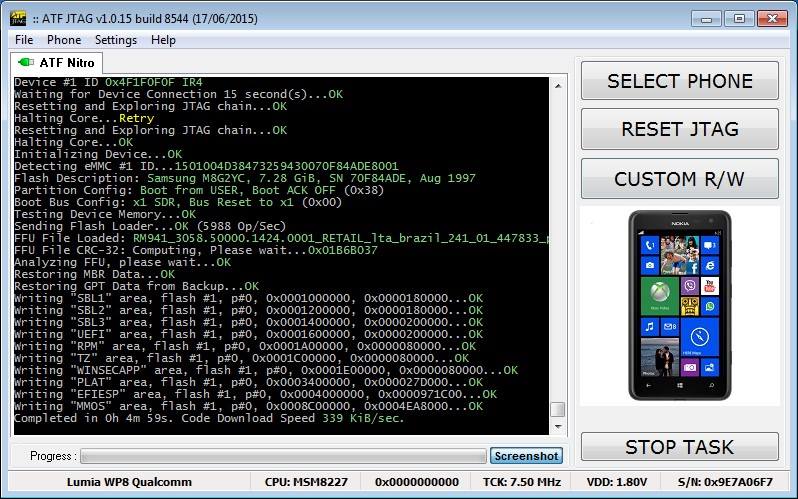

Reparo  de boot do galaxy S2 I9100 através da conexão direta ao EMMC



Está aqui o print do procedimento











Editado por ToninhoSantos

Compartilhar este post


Link para o post
Compartilhar em outros sites

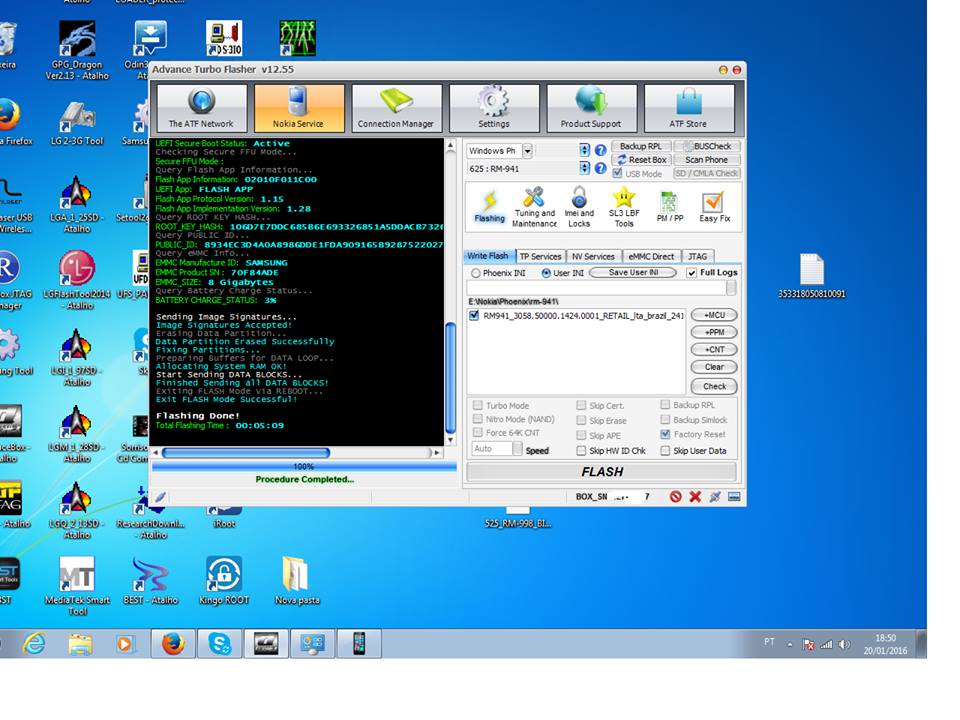

Lumia 640XL boot repair feito 100%



11:36:05 : ======================================================
11:36:05 :        eMMC Test Point Connection Module
11:36:05 : ======================================================
11:36:05 : ======================================================
11:36:05 :
11:36:05 : 1. DO NOT USE THE PHONE"S BATTERY
11:36:05 : 2. Connect the Soldered TP Connections to ATF Box
11:36:05 : 3. Disconnect the USB Cable and Wait until the
11:36:05 :    the ATF Software will tell you to Connect the USB.
11:36:05 :
11:36:05 :
11:36:05 : Interface Reset OK!
11:36:05 : eMMC Access Type: SECTOR MODE
11:36:05 : eMMC Supported Voltage Range:
11:36:05 : 3.5-3.6V, 3.4-3.5V, 3.3-3.4V, 3.2-3.3V, 3.1-3.2V
3.0-3.1V, 2.9-3.0V, 2.8-2.9V, 2.7-2.8V, 1.9-2.0V
11:36:05 :
11:36:05 : CID : 110100303038474530001C55AA8C22D7
11:36:05 : CSD : D05E00320F5903FFFFFFFFEF924000D3
11:36:05 :
11:36:05 : eMMC Boot Information
11:36:05 : Revision 1.7 (for MMC v5.0, v5.01)
11:36:05 : BOOT PARTITION     : USER AREA
11:36:05 : PARTITION ACCESS   : R/W USER PARTITION
11:36:05 : PERM_BOOT_CFG_PROT : DISABLED
11:36:05 : PWR_BOOT_CFG_PROT  : DISABLED
11:36:05 : BOOT MODE          : x1 SINGLE DATA RATE + LOW SPEED
11:36:05 : RESET BUS WIDTH    : ENABLED
11:36:05 : eMMC FirmW UPDATE  : DISABLED
11:36:05 : EMMC CACHE SIZE    : 0 KB
11:36:05 : SUPER PAGE SIZE    : 4096 KB
11:36:05 : HC ERASE GROUP SIZE: 4096 KB
11:36:05 : USER AREA SIZE     : 7818182656 BYTES
11:36:05 : BOOT PARTITION SIZE: 4096 KB
11:36:05 : RPMB PARTITION SIZE: 4096 KB
11:36:05 :
11:36:05 :
11:36:06 : eMMC Device Information
11:36:06 : Manufacturer ID: TOSHIBA
11:36:06 : Device Type    : Embedded BGA
11:36:06 : Application ID : 00
11:36:06 : Product Name   : 008GE0
11:36:06 : Product Rev    : 0.0
11:36:06 : Product SN     : 1C55AA8C
11:36:06 : Manufactured   : January 1999
11:36:06 :
11:36:06 : Card Specific Data
11:36:06 : CSD_STRUCTURE     : Extended
11:36:06 : SPEC_VERS         : Version 4.1/4.2/4.3
11:36:06 : TAAC              : 800 ns
11:36:06 : TRAN_SPEED        : 4000000 KHz
11:36:06 : READ_BL_LEN       : 512 Bytes
11:36:06 : C_SIZE            : HIGH CAPACITY
11:36:06 : WP_GRP_ENABLE     : YES
11:36:06 : WRITE_BL_LEN      : 512 Bytes
11:36:06 : CONTENT_PROT_APP  : NO
11:36:06 : PERM_WRITE_PROTECT: NO
11:36:06 : TMP_WRITE_PROTECT : NO
11:36:06 :
11:36:06 : Extended CSD Saved:
11:36:06 : 110100303038474530001C55AA8C22D7.ext_csd
11:36:06 : Backup Directory:
11:36:06 : C:\AdvanceBox Turbo Flasher\eMMC\EXT_CSD\
11:36:06 :
11:36:14 :
11:36:14 : ======================================================
11:36:14 :      Loading ATF MMC File... (Please Wait)
11:36:14 : ======================================================
11:36:14 :
11:36:14 : MMC File Version: v12.31
11:36:14 : MMC File Author: 8A4EB1A9D53D31F59F02EF8F
11:36:14 : Date Created: 03/06/2015 (dd/mm/yyyy)
11:36:14 : Description: Lumia 640 XL - RM-1067 - BOOT= 02166.00000.15103.05001
11:36:14 :
11:36:20 : Current Partition: Partition 1
11:36:20 : Start Writing Blocks...
11:36:20 : Writing Blocks Done!
11:36:20 : Current Partition: Partition 2
11:36:20 : Start Writing Blocks...
11:36:20 : Writing Blocks Done!
11:36:20 : Current Partition: Partition 3
11:36:20 : Start Writing Blocks...
11:36:20 : Writing Blocks Done!
11:36:20 : Current Partition: Partition 4
11:36:20 : Start Writing Blocks...
11:36:21 : Writing Blocks Done!
11:36:21 : Current Partition: Partition 5
11:36:21 : Start Writing Blocks...
11:36:22 : Writing Blocks Done!
11:36:22 : Current Partition: Partition 6
11:36:22 : Start Writing Blocks...
11:36:26 : Writing Blocks Done!
11:36:26 : Current Partition: Partition 7
11:36:26 : Start Writing Blocks...
11:36:27 : Writing Blocks Done!
11:36:27 : Current Partition: Partition 8
11:36:27 : Start Writing Blocks...
11:36:28 : Writing Blocks Done!
11:36:28 : Current Partition: Partition 9
11:36:28 : Start Writing Blocks...
11:36:29 : Writing Blocks Done!
11:36:29 : Current Partition: Partition 10
11:36:29 : Start Writing Blocks...
11:36:58 : Writing Blocks Done!
11:36:59 : Current Partition: Partition 11
11:36:59 : Start Writing Blocks...
11:37:13 : Writing Blocks Done!
11:37:15 : Current Partition: Partition 12
11:37:15 : Start Writing Blocks...
11:40:47 : Writing Blocks Done!
11:40:47 :
11:40:47 :
11:40:47 : Perform Firmware Update via USB Cable.
