XT2016-2 Start Up Failed

Posts Recomendados

Pessoal,



Estou com um XT2016-2 na bancada que vai direto no "Start Up Failed", ja tentei instalar todas as versões mais recentes possíveis e nada resolve!





As informações do aparelho:



(bootloader) version: 0.5
(bootloader) version-bootloader: MBM-2.1-lima_retail-c2fab9a-191226
(bootloader) product: lima
(bootloader) board: lima
(bootloader) secure: yes
(bootloader) hwrev: PVT
(bootloader) radio: 2
(bootloader) storage-type: eMMC
(bootloader) emmc: 64GB SKHYNIX hC8aP> RV=08 PV=00 FV=0000000034303030
(bootloader) ram: 4GB SKHYNIX LP4x DIE=16Gb M5=06 M6=05 M7=00 M8=11
(bootloader) cpu: MT6771V/WL
(bootloader) serialno: ZF52324B87
(bootloader) cid: 0x0032
(bootloader) channelid: 0x19
(bootloader) uid: 28CDCFF19AC4DCA1000000000000
(bootloader) securestate: oem_locked
(bootloader) factory-modes: disabled
(bootloader) iswarrantyvoid: no
(bootloader) max-download-size: 268435456
(bootloader) reason: No bootable A/B slot
(bootloader) imei: 357233104419334
(bootloader) imei2: 357233104419342
(bootloader) meid:
(bootloader) date: 12-14-2019
(bootloader) sku: XT2016-2
(bootloader) carrier_sku: XT2016-2
(bootloader) battid: SB18C55376
(bootloader) iccid:
(bootloader) max-sparse-size: 268435456
(bootloader) current-time: "Mon Apr  6  3: 4: 3 UTC 2020"
(bootloader) ro.build.fingerprint[0]: motorola/lima/lima:9/PMDS29.70-48-
(bootloader) ro.build.fingerprint[1]: 2/3fa4e7:user/release-keys
(bootloader) poweroffalarm: 0
(bootloader) ro.build.version.full[0]: Blur_Version.29.231.2.lima.retail
(bootloader) ro.build.version.full[1]: .en.US
(bootloader) ro.build.version.mtk: alps-mp-p0.mp1.tc2sp-V1.47
(bootloader) version-baseband: MT6771_V10.02.01.81R
(bootloader) kernel.version[0]: Linux version 4.4.146+ ([email protected]
(bootloader) kernel.version[1]: 152) (Android (4691093 based on r316199)
(bootloader) kernel.version[2]:  clang version 6.0.2 (https://android.go
(bootloader) kernel.version[3]: oglesource.com/toolchain/clang 183abd29f
(bootloader) kernel.version[4]: c496f55536e7d904e0abae47888fc7f) (https:
(bootloader) kernel.version[5]: //android.googlesource.com/toolchain/llv
(bootloader) kernel.version[6]: m 34361f192e41ed6e4e8f9aca80a4ea7e9856f3
(bootloader) kernel.version[7]: 27) (based on LLVM 6.0.2svn)) #1 SMP PRE
(bootloader) kernel.version[8]: EMPT Thu Oct 3 07:05:42 CDT 2019
(bootloader) frp-state: protected (77)
(bootloader) ro.carrier: retbr
(bootloader) current-slot: a
(bootloader) running-boot-lun: 0
(bootloader) running-slot: _a
(bootloader) slot-successful:_a: no
(bootloader) slot-successful:_b: no
(bootloader) slot-bootable:_a: no
(bootloader) slot-bootable:_b: no
(bootloader) slot-retry-count:_a: 0
(bootloader) slot-retry-count:_b: 0
(bootloader) slot-suffixes: _a,_b
(bootloader) slot-count: 2
(bootloader) pcb-part-no: SB28C70894
all: listed above
finished. total time: 0.186s





O processo de instalação:



C:\Users\gusta\Desktop\platform-tools>fastboot oem fb_mode_set
                                                   OKAY [  0.003s]
Finished. Total time: 0.017s

C:\Users\gusta\Desktop\platform-tools>fastboot flash gpt PGPT
(bootloader) is-logical:gpt
(bootloader) : not found
Sending 'gpt' (24 KB)                              OKAY [  0.003s]
Writing 'gpt'                                      OKAY [  0.037s]
Finished. Total time: 0.174s

C:\Users\gusta\Desktop\platform-tools>fastboot flash preloader preloader.bin
(bootloader) is-logical:preloader
(bootloader) : not found
Sending 'preloader' (260 KB)                       OKAY [  0.039s]
Writing 'preloader'                                OKAY [  0.036s]
Finished. Total time: 0.187s

C:\Users\gusta\Desktop\platform-tools>fastboot flash lk_a lk.img
(bootloader) is-logical:lk_a
(bootloader) : not found
Sending 'lk_a' (1198 KB)                           OKAY [  0.084s]
Writing 'lk_a'                                     OKAY [  0.069s]
Finished. Total time: 0.267s

C:\Users\gusta\Desktop\platform-tools>fastboot flash tee_a tee.img
(bootloader) is-logical:tee_a
(bootloader) : not found
Sending 'tee_a' (498 KB)                           OKAY [  0.029s]
Writing 'tee_a'                                    OKAY [  0.066s]
Finished. Total time: 0.243s

C:\Users\gusta\Desktop\platform-tools>fastboot flash md1img_a md1img.img
(bootloader) is-logical:md1img_a
(bootloader) : not found
Sending 'md1img_a' (58495 KB)                      OKAY [  2.379s]
Writing 'md1img_a'                                 OKAY [  1.687s]
Finished. Total time: 4.187s

C:\Users\gusta\Desktop\platform-tools>fastboot erase nvdata
******** Did you mean to fastboot format this ext4 partition?
Erasing 'nvdata'                                   OKAY [  0.003s]
Finished. Total time: 0.044s

C:\Users\gusta\Desktop\platform-tools>fastboot flash spmfw_a spmfw.img
(bootloader) is-logical:spmfw_a
(bootloader) : not found
Sending 'spmfw_a' (39 KB)                          OKAY [  0.010s]
Writing 'spmfw_a'                                  OKAY [  0.019s]
Finished. Total time: 0.143s

C:\Users\gusta\Desktop\platform-tools>fastboot flash scp_a scp.img
(bootloader) is-logical:scp_a
(bootloader) : not found
Sending 'scp_a' (593 KB)                           OKAY [  0.045s]
Writing 'scp_a'                                    OKAY [  0.095s]
Finished. Total time: 0.312s

C:\Users\gusta\Desktop\platform-tools>fastboot flash sspm_a sspm.img
(bootloader) is-logical:sspm_a
(bootloader) : not found
Sending 'sspm_a' (491 KB)                          OKAY [  0.045s]
Writing 'sspm_a'                                   OKAY [  0.038s]
Finished. Total time: 0.229s

C:\Users\gusta\Desktop\platform-tools>fastboot flash cam_vpu1_a cam_vpu1.img
(bootloader) is-logical:cam_vpu1_a
(bootloader) : not found
Sending 'cam_vpu1_a' (1620 KB)                     OKAY [  0.092s]
Writing 'cam_vpu1_a'                               OKAY [  0.092s]
Finished. Total time: 0.310s

C:\Users\gusta\Desktop\platform-tools>fastboot flash cam_vpu2_a cam_vpu2.img
(bootloader) is-logical:cam_vpu2_a
(bootloader) : not found
Sending 'cam_vpu2_a' (9735 KB)                     OKAY [  0.402s]
Writing 'cam_vpu2_a'                               OKAY [  0.444s]
Finished. Total time: 1.055s

C:\Users\gusta\Desktop\platform-tools>fastboot flash cam_vpu3_a cam_vpu3.img
(bootloader) is-logical:cam_vpu3_a
(bootloader) : not found
Sending 'cam_vpu3_a' (5011 KB)                     OKAY [  0.293s]
Writing 'cam_vpu3_a'                               OKAY [  0.227s]
Finished. Total time: 0.638s

C:\Users\gusta\Desktop\platform-tools>fastboot flash vbmeta_a vbmeta.img
(bootloader) is-logical:vbmeta_a
(bootloader) : not found
Sending 'vbmeta_a' (4 KB)                          OKAY [  0.005s]
Writing 'vbmeta_a'                                 OKAY [  0.042s]
Finished. Total time: 0.133s

C:\Users\gusta\Desktop\platform-tools>fastboot flash oem_a oem.img
(bootloader) is-logical:oem_a
(bootloader) : not found
Sending 'oem_a' (16476 KB)                         OKAY [  0.529s]
Writing 'oem_a'                                    OKAY [  0.231s]
Finished. Total time: 1.111s

C:\Users\gusta\Desktop\platform-tools>fastboot flash logo_a logo.bin
(bootloader) is-logical:logo_a
(bootloader) : not found
Sending 'logo_a' (3096 KB)                         OKAY [  0.131s]
Writing 'logo_a'                                   OKAY [  0.161s]
Finished. Total time: 0.466s

C:\Users\gusta\Desktop\platform-tools>fastboot flash boot_a boot.img
(bootloader) is-logical:boot_a
(bootloader) : not found
Sending 'boot_a' (32768 KB)                        OKAY [  1.627s]
Writing 'boot_a'                                   OKAY [  0.537s]
Finished. Total time: 2.265s

C:\Users\gusta\Desktop\platform-tools>fastboot flash dtb_a dtb.img
(bootloader) is-logical:dtb_a
(bootloader) : not found
Sending 'dtb_a' (111 KB)                           OKAY [  0.009s]
Writing 'dtb_a'                                    OKAY [  0.022s]
Finished. Total time: 0.168s

C:\Users\gusta\Desktop\platform-tools>fastboot flash dtbo_a dtbo.img
(bootloader) is-logical:dtbo_a
(bootloader) : not found
Sending 'dtbo_a' (468 KB)                          OKAY [  0.055s]
Writing 'dtbo_a'                                   OKAY [  0.036s]
Finished. Total time: 0.287s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.0
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (258248 KB)                     OKAY [ 11.206s]
Writing 'system_a'                                 OKAY [  3.246s]
Finished. Total time: 18.135s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.1
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (257324 KB)                     OKAY [  9.403s]
Writing 'system_a'                                 OKAY [  3.253s]
Finished. Total time: 16.903s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.2
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (257324 KB)                     OKAY [ 10.325s]
Writing 'system_a'                                 OKAY [  3.239s]
Finished. Total time: 17.087s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.3
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (257324 KB)                     OKAY [  9.393s]
Writing 'system_a'                                 OKAY [  3.235s]
Finished. Total time: 17.849s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.4
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (257324 KB)                     OKAY [  8.718s]
Writing 'system_a'                                 OKAY [  3.230s]
Finished. Total time: 15.492s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.5
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (258080 KB)                     OKAY [  8.331s]
Writing 'system_a'                                 OKAY [  3.245s]
Finished. Total time: 16.737s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.6
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (258080 KB)                     OKAY [  8.384s]
Writing 'system_a'                                 OKAY [  3.248s]
Finished. Total time: 15.537s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.7
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (258080 KB)                     OKAY [  8.839s]
Writing 'system_a'                                 OKAY [  3.246s]
Finished. Total time: 15.465s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.8
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (258080 KB)                     OKAY [ 26.272s]
Writing 'system_a'                                 OKAY [  3.252s]
Finished. Total time: 38.604s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_a system.img_sparsechunk.9
(bootloader) is-logical:system_a
(bootloader) : not found
Sending 'system_a' (223796 KB)                     OKAY [  7.352s]
Writing 'system_a'                                 OKAY [  2.837s]
Finished. Total time: 15.240s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_b system_other.img_sparsechunk.0
(bootloader) is-logical:system_b
(bootloader) : not found
Sending 'system_b' (257524 KB)                     OKAY [ 12.007s]
Writing 'system_b'                                 OKAY [  3.245s]
Finished. Total time: 18.733s

C:\Users\gusta\Desktop\platform-tools>fastboot flash system_b system_other.img_sparsechunk.1
(bootloader) is-logical:system_b
(bootloader) : not found
Sending 'system_b' (105396 KB)                     OKAY [  4.543s]
Writing 'system_b'                                 OKAY [  1.345s]
Finished. Total time: 7.626s

C:\Users\gusta\Desktop\platform-tools>fastboot flash vendor_a vendor.img_sparsechunk.0
(bootloader) is-logical:vendor_a
(bootloader) : not found
Sending 'vendor_a' (258852 KB)                     OKAY [ 17.898s]
Writing 'vendor_a'                                 OKAY [  3.277s]
Finished. Total time: 25.732s

C:\Users\gusta\Desktop\platform-tools>fastboot flash vendor_a vendor.img_sparsechunk.1
(bootloader) is-logical:vendor_a
(bootloader) : not found
Sending 'vendor_a' (102212 KB)                     OKAY [  4.510s]
Writing 'vendor_a'                                 OKAY [  1.291s]
Finished. Total time: 8.984s

C:\Users\gusta\Desktop\platform-tools>fastboot erase userdata
Erasing 'userdata'                                 OKAY [  0.011s]
Finished. Total time: 0.144s

C:\Users\gusta\Desktop\platform-tools>fastboot erase metadata
Erasing 'metadata'                                 OKAY [  0.004s]
Finished. Total time: 0.017s

C:\Users\gusta\Desktop\platform-tools>fastboot oem fb_mode_clear
                                                   OKAY [  0.003s]
Finished. Total time: 0.093s

Compartilhar este post


Link para o post
Compartilhar em outros sites

Tenta instalar utilizando o software do fabricante Lenovo Moto Smart Assistant.



Poste resultados.

Boa sorte.

Compartilhar este post


Link para o post
Compartilhar em outros sites

O problema que la não tem o modelo do aparelho, que seria Motorola One Macro.

Captura de Tela (3).png

Compartilhar este post


Link para o post
Compartilhar em outros sites

umt ou pelo script e se nao der ai por enquanto sem soluçao ja peguei uns 10 dessa nova linha da motorola com cpu mtk  helio tudo fraco sem contar que alguns ainda tem o chipset na hinix que e campeao de dar pau so lembrar do lgs d325,d295 sansung 9192 tudo hinix

Compartilhar este post


Link para o post
Compartilhar em outros sites

:32_expressionless:tabem eu com um moto one xt2016-2       mesmo poblema

start up failed      temtei de tudo







(bootloader) version: 0.5
(bootloader) version-bootloader: MBM-2.1-lima_retail-c2fab9a-191118
(bootloader) product: lima
(bootloader) board: lima
(bootloader) secure: yes
(bootloader) hwrev: PVT
(bootloader) radio: 2
(bootloader) storage-type: eMMC
(bootloader) emmc: 64GB MICRON S0J9K8 RV=08 PV=00 FV=0000000000000004
(bootloader) ram: 4GB MICRON LP4 DIE=16Gb M5=FF M6=04 M7=10 M8=10
(bootloader) cpu: MT6771V/WL
(bootloader) serialno: 0064740674
(bootloader) cid: 0x0032
(bootloader) channelid: 0x19
(bootloader) uid: 4F2ED19B5CAD6024000000000000
(bootloader) securestate: flashing_locked
(bootloader) factory-modes: disabled
(bootloader) iswarrantyvoid: yes
(bootloader) max-download-size: 268435456
(bootloader) reason: No bootable A/B slot
(bootloader) imei: 357233108384419
(bootloader) imei2: 357233108384427
(bootloader) meid:
(bootloader) date: 02-07-2020
(bootloader) sku: XT2016-2
(bootloader) carrier_sku: XT2016-2
(bootloader) battid: SB18C51711
(bootloader) iccid:
(bootloader) max-sparse-size: 268435456
(bootloader) current-time: "Tue Jan  1 16:50:31 UTC 2019"
(bootloader) ro.build.fingerprint[0]: motorola/lima/lima:9/PMD29.70-81/c
(bootloader) ro.build.fingerprint[1]: b27e:user/release-keys
(bootloader) poweroffalarm: 0
(bootloader) ro.build.version.full[0]: Blur_Version.29.31.91.lima.retail
(bootloader) ro.build.version.full[1]: .en.US
(bootloader) ro.build.version.mtk: alps-mp-p0.mp1.tc2sp-V1.47
(bootloader) version-baseband: MT6771_V16.03.01.90R
(bootloader) kernel.version[0]: Linux version 4.4.146+ ([email protected]
(bootloader) kernel.version[1]: 170) (Android (4691093 based on r316199)
(bootloader) kernel.version[2]:  clang version 6.0.2 (https://android.go
(bootloader) kernel.version[3]: oglesource.com/toolchain/clang 183abd29f
(bootloader) kernel.version[4]: c496f55536e7d904e0abae47888fc7f) (https:
(bootloader) kernel.version[5]: //android.googlesource.com/toolchain/llv
(bootloader) kernel.version[6]: m 34361f192e41ed6e4e8f9aca80a4ea7e9856f3
(bootloader) kernel.version[7]: 27) (based on LLVM 6.0.2svn)) #1 SMP PRE
(bootloader) kernel.version[8]: EMPT Fri Mar 6 10:12:55 CST 2020
(bootloader) frp-state: protected (77)
(bootloader) ro.carrier: retbr
(bootloader) current-slot: a
(bootloader) running-boot-lun: 0
(bootloader) running-slot: _a
(bootloader) slot-successful:_a: no
(bootloader) slot-successful:_b: no
(bootloader) slot-bootable:_a: no
(bootloader) slot-bootable:_b: no
(bootloader) slot-retry-count:_a: 0
(bootloader) slot-retry-count:_b: 0
(bootloader) slot-suffixes: _a,_b
(bootloader) slot-count: 2
(bootloader) pcb-part-no: SB28C73656
all: listed above

Compartilhar este post


Link para o post
Compartilhar em outros sites

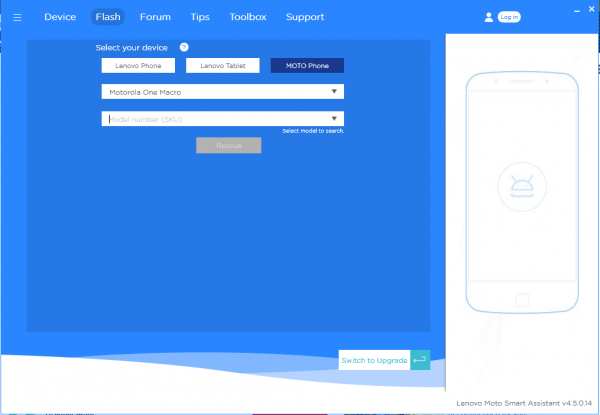

Capturar.thumb.PNG.c05aeae4769137ca79165ba2739a0676.PNGja esta disponivel  o modelo xt2016-1

ate o momento so esse

Compartilhar este post


Link para o post
Compartilhar em outros sites

amigo eu fiz o Blank flash e nao tive sucesso mas quando eu tento instalar a rom dinovo ele entra em um bootloop teporario e eu estou conseguindo entra na tela recovery mode
acho que estamos perto

Compartilhar este post


Link para o post
Compartilhar em outros sites

Participe da conversa

Você pode postar agora e se cadastrar mais tarde. Se você tem uma conta, faça o login para postar com sua conta.
Note: Your post will require moderator approval before it will be visible.

Visitante
Responder

×   Você colou conteúdo com formatação.   Remover formatação

  Apenas 75 emojis são permitidos.

×   Seu link foi automaticamente incorporado.   Mostrar como link

×   Seu conteúdo anterior foi restaurado.   Limpar o editor

×   Não é possível colar imagens diretamente. Carregar ou inserir imagens do URL.


  • Quem Está Navegando   0 membros estão online

    Nenhum usuário registrado visualizando esta página.
