5130 contact service done by mxkey

Por Josenilton Lisboa
em MX-KEY (by Alim Hape)

Featured Replies

Postado

Posted Image

weights 68KB.

Posted Image

Using device: J.A.F, FW ver: 01.B1

RAP Data :

SYSTEM ASIC ID: 000000010000022600010006030C192101033000 [RAP3G ver: PA 3.x]

EM1 ID: 00000296

EM2 ID: 00000B22

PUBLIC ID: 1D400117AABC7E5693174CFF4997EB47F515DC90

ASIC MODE ID: 00

ROOT KEY HASH: 9DDBFCFE6E73CED7D8C6268C8EB85723

ROM ID: 273F6D55DFAAF68F

SecondaryBoot: rap3gv3_2nd.fg [bB5] version: 9.11.1 revision: 0.0 size: 0x3C00

Supported RAP Ids: 0103192101003000, 010C192101003000, 0103192101013000, 010C192101013000, 0103192101003100, 010C192101003100, 0303192101023000, 030C192101023000, 0303192101033000, 030C192101033000, 0103192101001101, 010C192101001101, 0003192101001002, 000C192101001002, 0013192101001002, 001C192101001002

FlashID0: 0089 8982 - 0000 8A31 [intel NU48F512,512 Mbits] type: NOR,RAP

ExtBUSC: 0000 0000 0000 0000 0000 0000 0000 0000

ExtDEVC: FFFF 0000 - 0000 0000

Algorithm: RAP3Gv3_algo_131.fg [bB5 ALGORITHM] version: 1.31.0 revision: 0.0 size: 0x297E0

Supported RAP Ids: 0103192101003000, 010C192101003000, 0103192101013000, 010C192101013000, 0103192101003100, 010C192101003100, 0303192101023000, 030C192101023000, 0303192101033000, 030C192101033000, 0003192101002000, 000C192101002000, 0003192101002100, 000C192101002100, 0003192101002200, 000C192101002200, 0003192101012200, 000C192101012200, 0103192101001101, 010C192101001101, 0003192101001002, 000C192101001002, 0013192101001002, 001C192101001002

RAP PAPUBKEYS HASH: 0C917F11196FDB7378C18EF7260698CA4489DCA0

Original Imei: xxxxxxxxxx

Original Product code: 0571943

Bluetooth ID: 0025CF194E2A

Phone Type: RM-495 (Nokia 5130c-2)

SW Version: V 06.65 01-04-09 RM-495 © Nokia

Imei plain: xxxxxxxxxxxx

Product Code: 0571943

Language Pack:

- not available.

This phone have PM308 protected, SD security in not restorable.

- Avoid manual erase to this phone !

SIMLOCK seems to be valid

SUPERDONGLE_KEY seems to be valid

SIMLOCK_TEST passed

SECURITY_TEST failed!

Imei: xxxxxxxxxx

Version: SIMLOCK SERVER

Provider: Nokia Test, Country: Finland

Counter: 0/3, 0/10

CONFIG_DATA: 2440700000000000

PROFILE_BITS: 0000000000000000

BLOCK 1: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 2: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 3: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 4: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 5: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 6: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 7: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

Scanning local SX4 Card ...

No SX4 Card found.

Authenticating using security server ...

Connecting to server[nkrpl.biz] ...MXKEY-SX4 ver 2.5(ID), hello 124.6.181.28

SUPERDONGLE auth succeeded!

Writing PM from Node ...

Section: 1

- Key: 0, size 12 bytes written.

- Key: 1, size 70 bytes written.

- Key: 2, size 70 bytes written.

- Key: 3, size 70 bytes written.

- Key: 4, size 70 bytes written.

- Key: 5, size 276 bytes written.

- Key: 6, size 276 bytes written.

- Key: 7, size 276 bytes written.

- Key: 8, size 276 bytes written.

- Key: 9, size 384 bytes written.

- Key: 10, size 384 bytes written.

- Key: 11, size 384 bytes written.

- Key: 12, size 384 bytes written.

- Key: 13, size 384 bytes written.

- Key: 14, size 384 bytes written.

- Key: 15, size 384 bytes written.

- Key: 16, size 384 bytes written.

- Key: 17, size 32 bytes written.

- Key: 19, size 16 bytes written.

- Key: 20, size 32 bytes written.

- 120 skipped

- 308 skipped

Section: 309

- Key: 0, size 4 bytes written.

- Key: 1, size 2 bytes written.

- Key: 2, size 12 bytes written.

- Key: 4, size 12 bytes written.

- Key: 5, size 12 bytes written.

- Key: 7, size 12 bytes written.

- Key: 8, size 12 bytes written.

- Key: 17, size 12 bytes written.

- Key: 22, size 12 bytes written.

Completed in 5.047 s

Using device: J.A.F, FW ver: 01.B1

RAP Data :

SYSTEM ASIC ID: 000000010000022600010006030C192101033000 [RAP3G ver: PA 3.x]

EM1 ID: 00000296

EM2 ID: 00000B22

PUBLIC ID: 1D400117AABC7E5693174CFF4997EB47F515DC90

ASIC MODE ID: 00

ROOT KEY HASH: 9DDBFCFE6E73CED7D8C6268C8EB85723

ROM ID: 273F6D55DFAAF68F

SecondaryBoot: rap3gv3_2nd.fg [bB5] version: 9.11.1 revision: 0.0 size: 0x3C00

Supported RAP Ids: 0103192101003000, 010C192101003000, 0103192101013000, 010C192101013000, 0103192101003100, 010C192101003100, 0303192101023000, 030C192101023000, 0303192101033000, 030C192101033000, 0103192101001101, 010C192101001101, 0003192101001002, 000C192101001002, 0013192101001002, 001C192101001002

FlashID0: 0089 8982 - 0000 8A31 [intel NU48F512,512 Mbits] type: NOR,RAP

ExtBUSC: 0000 0000 0000 0000 0000 0000 0000 0000

ExtDEVC: FFFF 0000 - 0000 0000

Algorithm: RAP3Gv3_algo_131.fg [bB5 ALGORITHM] version: 1.31.0 revision: 0.0 size: 0x297E0

Supported RAP Ids: 0103192101003000, 010C192101003000, 0103192101013000, 010C192101013000, 0103192101003100, 010C192101003100, 0303192101023000, 030C192101023000, 0303192101033000, 030C192101033000, 0003192101002000, 000C192101002000, 0003192101002100, 000C192101002100, 0003192101002200, 000C192101002200, 0003192101012200, 000C192101012200, 0103192101001101, 010C192101001101, 0003192101001002, 000C192101001002, 0013192101001002, 001C192101001002

RAP PAPUBKEYS HASH: 0C917F11196FDB7378C18EF7260698CA4489DCA0

Original Imei: xxxxxxxxxxxx

Original Product code: 0571943

Bluetooth ID: 0025CF194E2A

Phone Type: RM-495 (Nokia 5130c-2)

SW Version: V 06.65 01-04-09 RM-495 © Nokia

Imei plain: xxxxxxxxxxxx

Product Code: 0571943

Language Pack:

- not available.

This phone have PM308 protected, SD security in not restorable.

- Avoid manual erase to this phone !

SIMLOCK seems to be valid

SUPERDONGLE_KEY seems to be valid

SIMLOCK_TEST passed

SECURITY_TEST passed

Imei: xxxxxxxxxxxx

Version: SIMLOCK SERVER

Provider: Nokia Test, Country: Finland

Counter: 0/3, 0/10

CONFIG_DATA: 2440700000000000

PROFILE_BITS: 0000000000000000

BLOCK 1: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 2: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 3: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 4: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 5: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 6: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

BLOCK 7: 1=OPEN 2=OPEN 3=OPEN 4=OPEN 5=OPEN, DATA=FFFFFF

Posted Image

Espero ter ajudado!!!bele

Postado

desculpa a ignorância não entender o post aq se refere a desbloquear o computador ou a solução quando eles se tornam os contactos de serviços e uma pergunta

ao tentar instalar a versão 3.2 diz que eu devo usar a última corrida e não sonda desinstalar e apagar o passado e o mesmo que eu faço?

SALUDOS!

Postado
  • Autor

Querido isso e somente para solucionar o problema quando o mesmo esta com Contac Service entendeu.

Agora eu não entendi quando o senhor se refere a versão.

o tentar instalar a versão 3.2 diz que eu devo usar a última corrida e não sonda desinstalar e apagar o passado e o mesmo que eu faço?
Postado

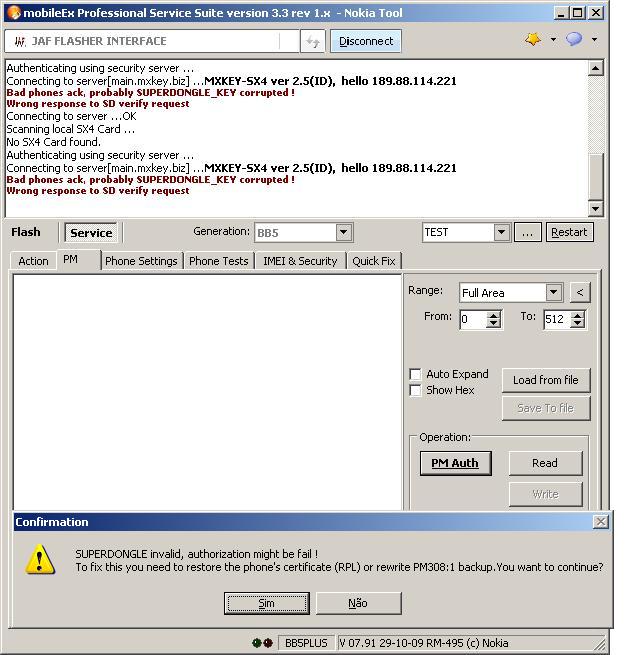

Amigo ao tentar fazer o procedimento para recupera o problema de contact service da um erro no progama e depois pede uma comfirmaçao vou posta a tela com o o erro a baixo


Postado

Amigo,se vc mandar o programa ler as informaçoes de seu aparelho,vc verá a seguinte mensagem:Superdongle key invalid... Infelizmente a Mx-key ainda nao faz o reparo disso,somente com MT-box ou Universal-box.

  • 2 semanas depois...
Postado
  • Autor

E colegas esse procedimento ai nao funcionou no meu caso,so reparando RPL mesmo.

Para deixar nosso post mais completo coloque o seu procedimento aqui pois ideias novas sempre são bem vindas.

Vlw amigo abraçosbele

  • 7 meses depois...
Postado

eu estou com um 5130 com este mesmo problema mais foi eu q causei eu oloquei uma pm modificado ele era bloqueado ai ficou em contact service tem como fazzer alguma coisa mais simples ele e bloqueado so tim
