amigo fiquei na dúvida como assim mudar a pinagem no RJ45?

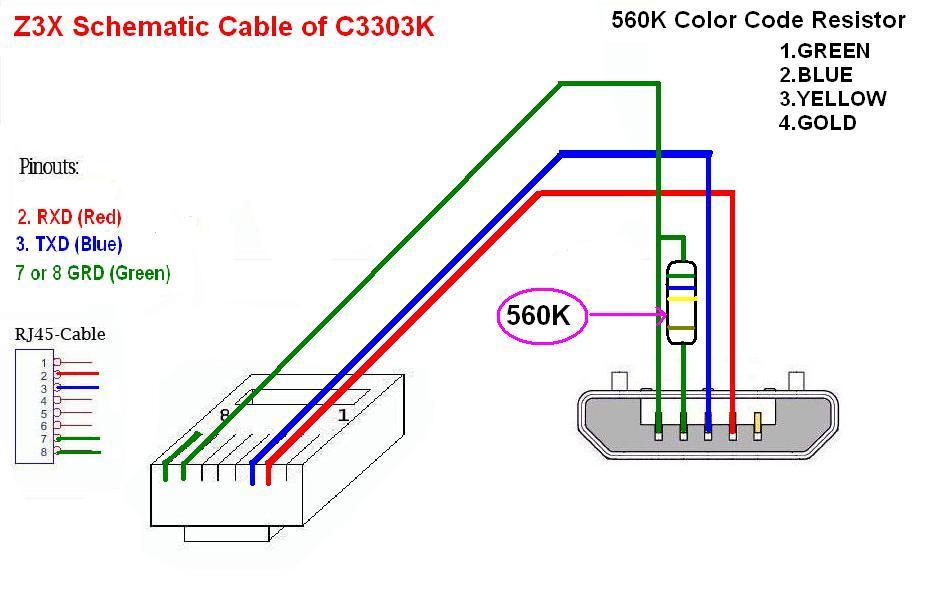

na z3x a pinagem e 1:vpp 2:rx 3:tx 7 e 8 gnd

já na ufs a pinagem e 1:vpp 4:tx 5:rx 7:gnd

entendeu?

qualquer duvida só postar farei o possível para sanar

boa sorte

  • Author

na z3x a pinagem e 1:vpp 2:rx 3:tx 7 e 8 gnd

já na ufs a pinagem e 1:vpp 4:tx 5:rx 7:gnd

entendeu?

qualquer duvida só postar farei o possível para sanar

boa sorte

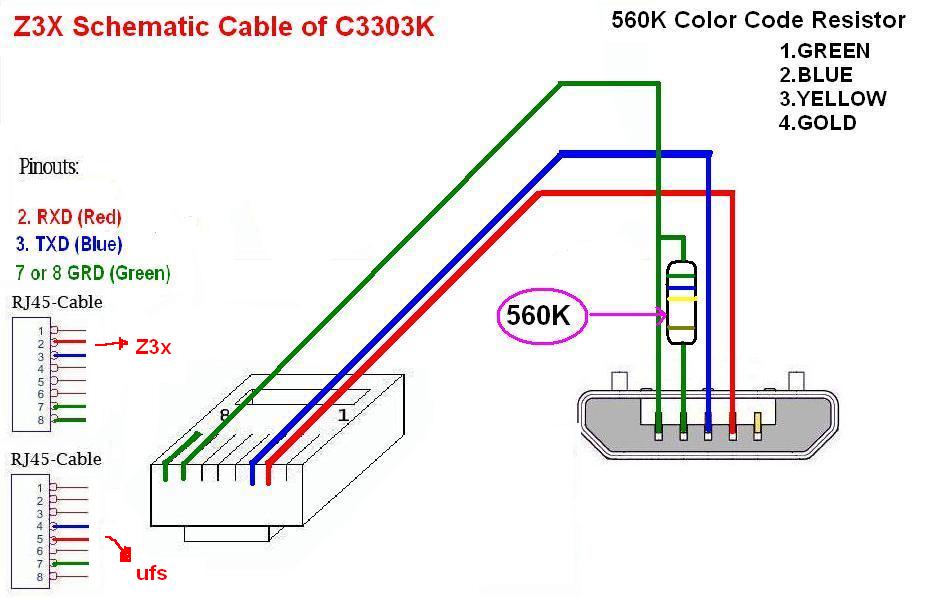

então nesse caso vai ficar assim amigo?post-11675-139967643737_thumb.jpg
